Tooteinfo:

Arguments:

• Lever transmission permits light force transfer

• Very easy to handle

• The respective cross-section is set by rotating profile disks

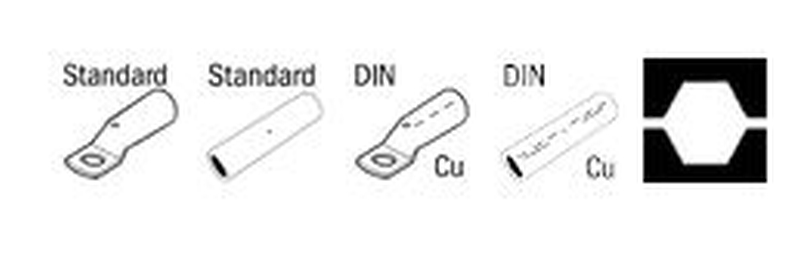

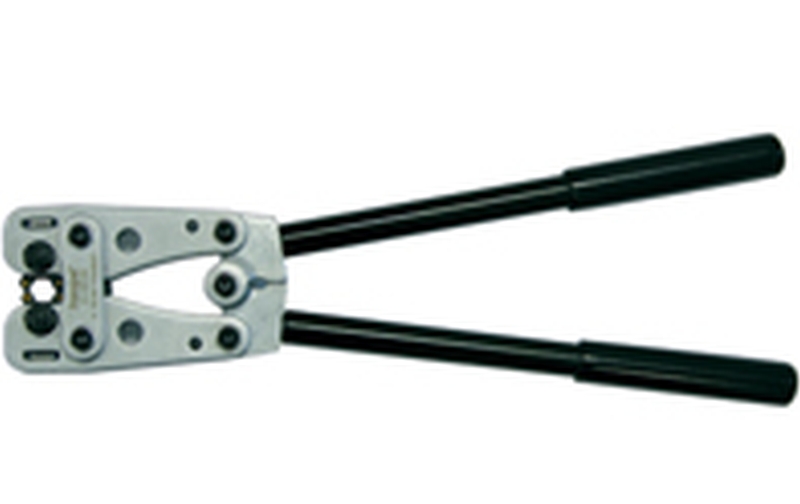

Crimping pliers for uninsulated tubular cable lugs

1. Choosing the connector

To achieve a standard-compliant connection it is necessary to choose the correct connector for the application and the right cable cross section.

2. Stripping

Before notching, the cable must be stripped according to the insertion length (+10% due to change in length of the crimping sleeve.

3. Cleaning

The ends of the wire must be cleaned thoroughly to remove all traces of dirt and oxidation before being assembled.

4. Assembly

Insert the cable into the cable lug or connector to its full insertion length. Crimp the cable lug or connector with the correct tool, taking account of the crimping direction.

Kauba kood	HA210805-R
SJH KM-ga	140,26

Toote kohta käivad soovitused
	Soovid seda tööriista omale päriseks?
	Telli enda tööriist siit:
		SJH KM-ga	Kogus
EL-90942413	Pigistustangid	117,21	1
EL-90942413	Pigistustangid	117,21	1
